1. 2-WAY BALL VALVES WITH THREADED CONNECTIONS

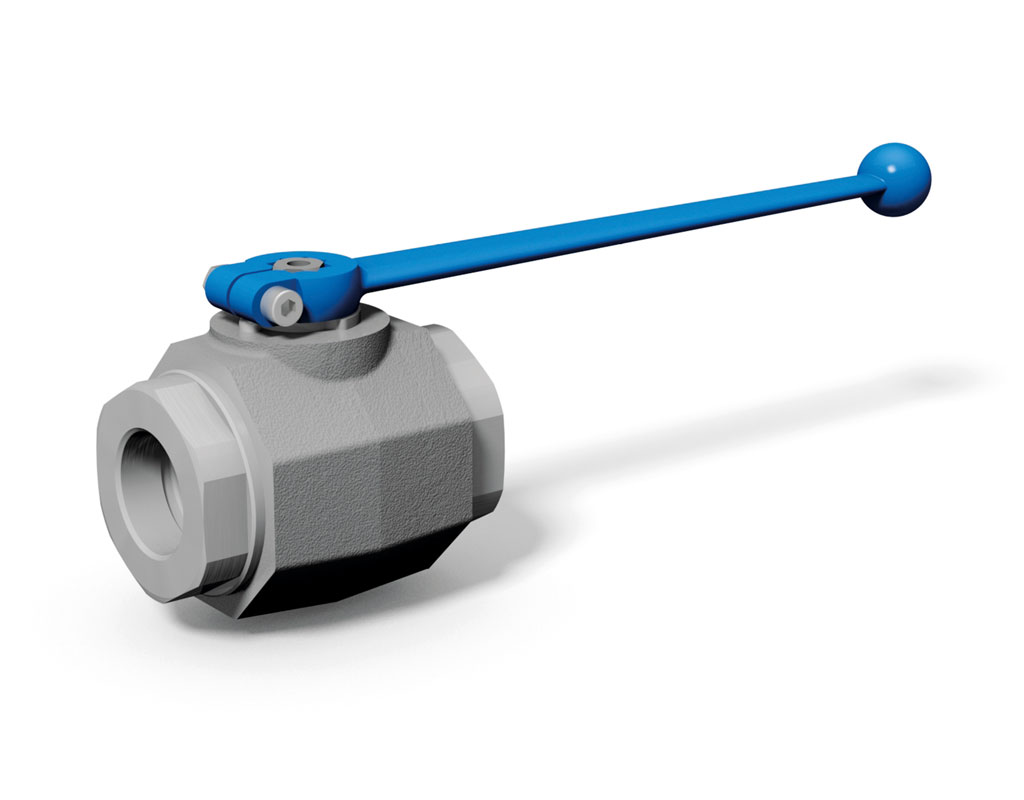

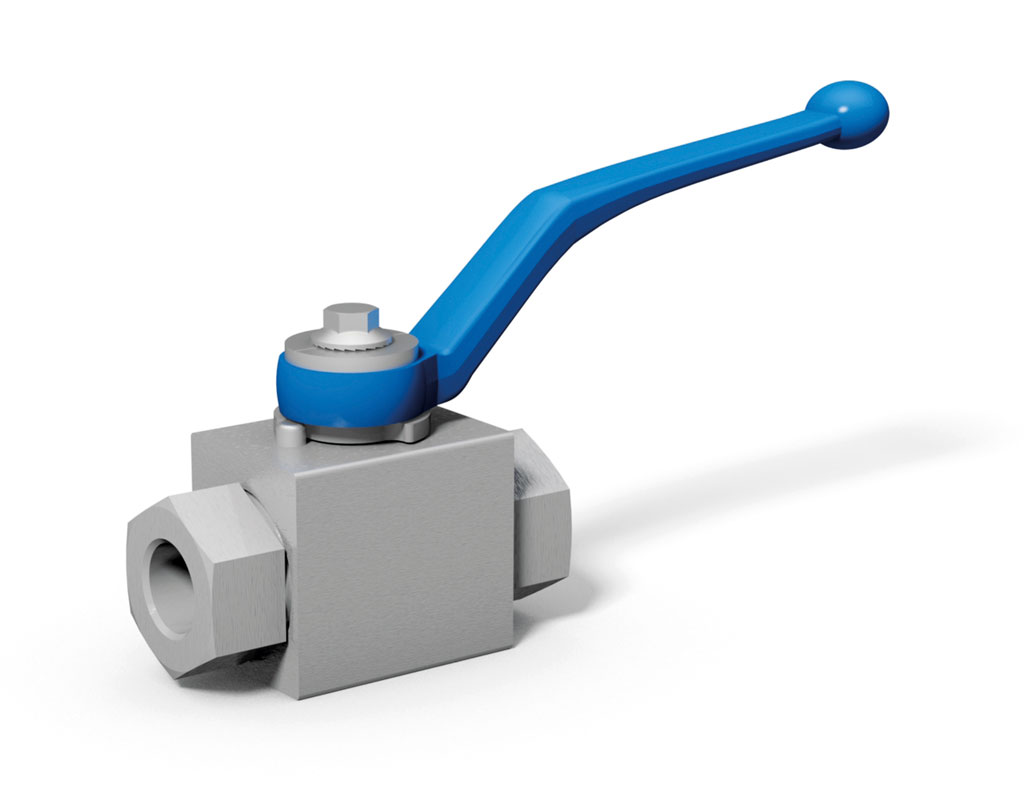

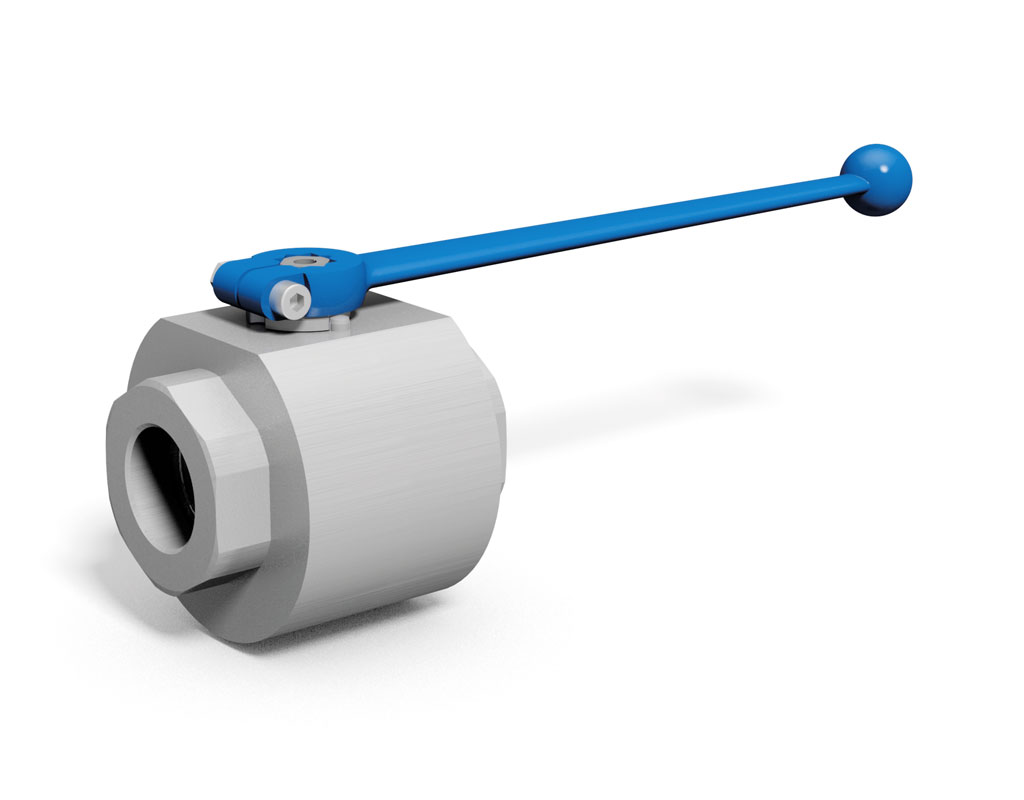

BKH/BKHP500
- 2-way ball valve with threaded connection
- PN : 250 - 500 bar
- Available sizes : DN4 - DN25
(1/8" to 1")
MKHP420
- 2-way ball valve with threaded connections
- PN : 420 bar
- Available sizes : DN32 - DN50 (1 1/4" to 2")
MKHP420 (Stainless steel)
- 2-way ball valve with threaded connections
- PN : 420 bar
- Available sizes :DN32 - DN50 (1 1/4" to 2")
2. 2-WAY LOW-PRESSURE BALL VALVES WITH THREADED CONNECTIONS

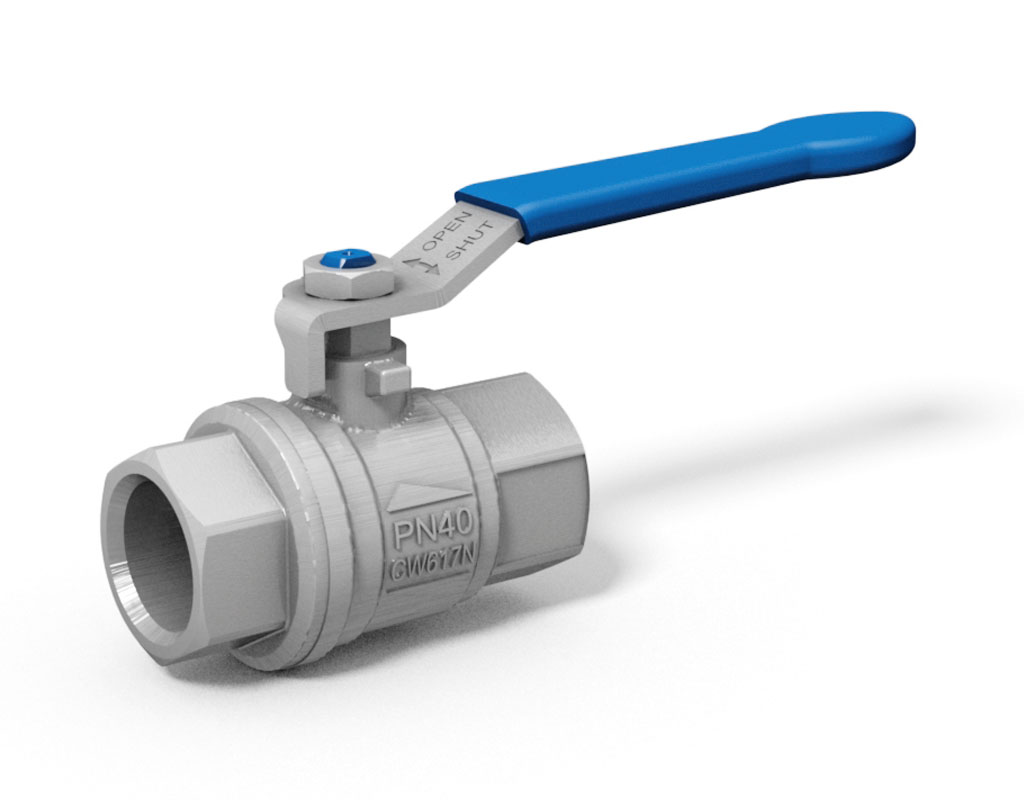

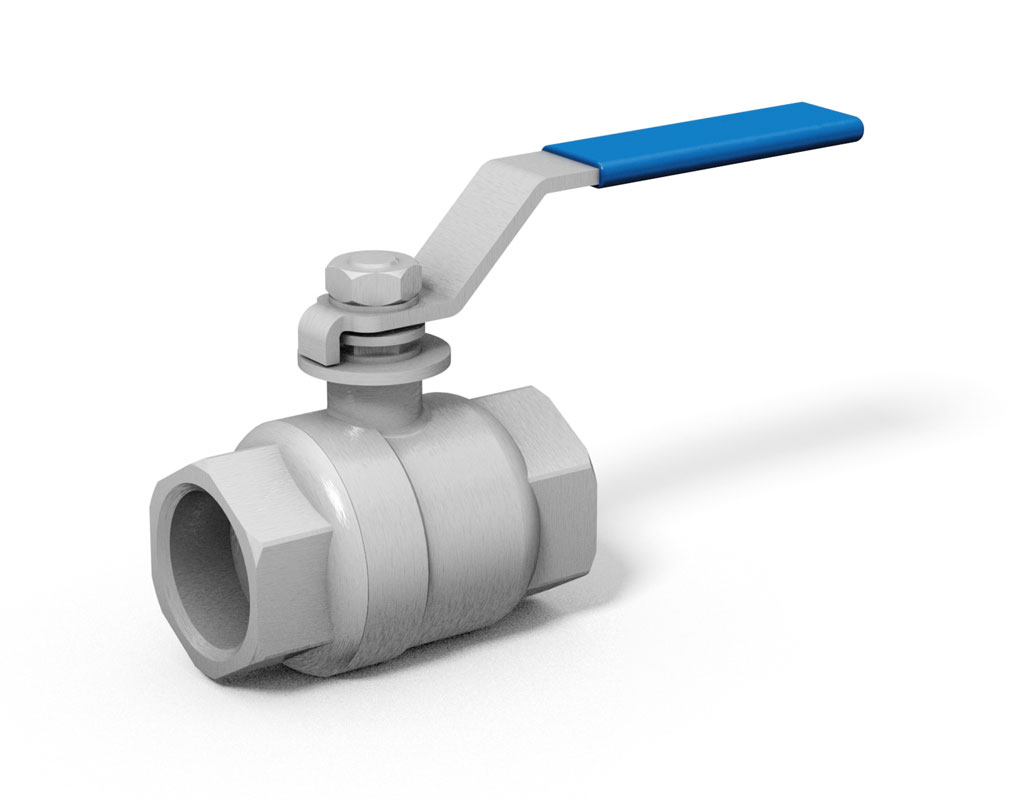

NKH
- 2-way low-pressure ball valve
- PN : 30 - 65 bar
- Available sizes : DN8 - DN100 (3/8" to 4")
NKH (Stainless steel)
- 2-way low-pressure ball valve
- PN : 63 bar
- Available sizes : DN6 - DN100 (1/4" to 4")
3. 2-WAY BALL VALVES WITH SAE CONNECTION

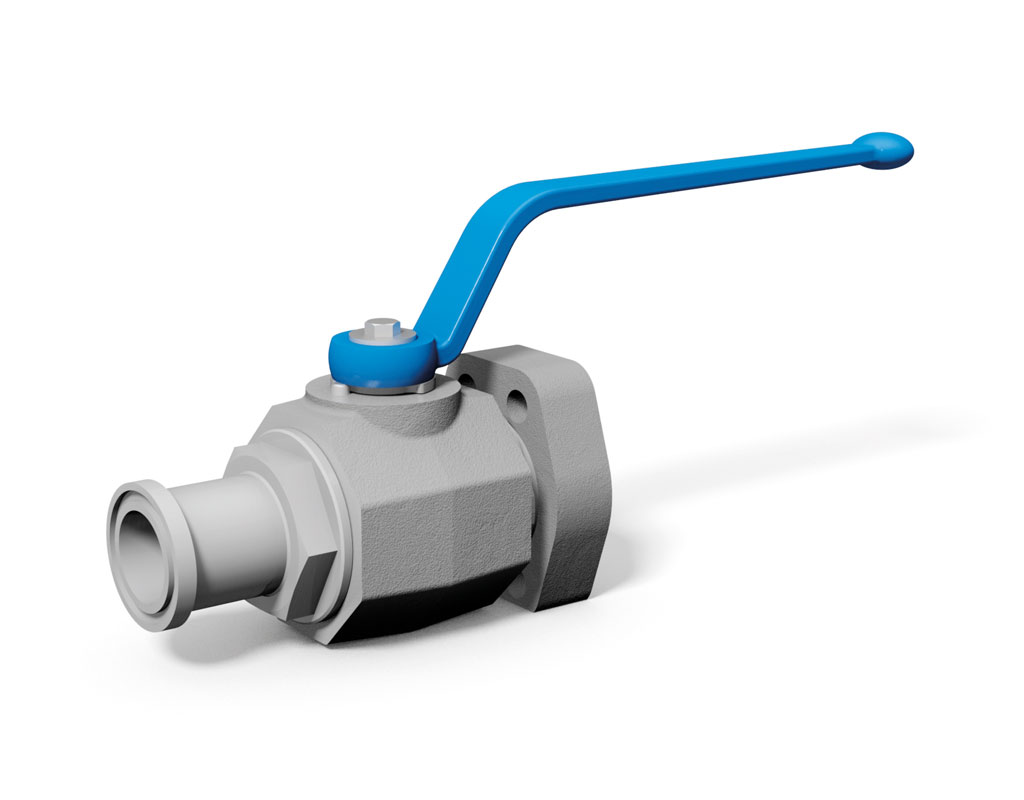

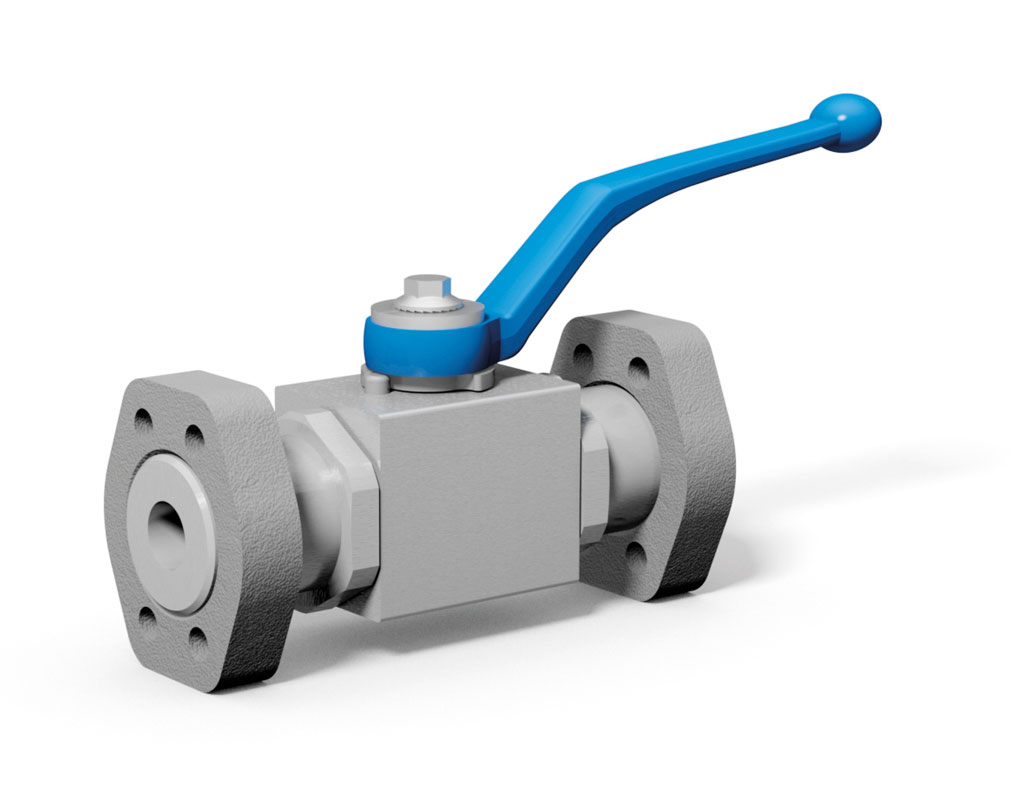

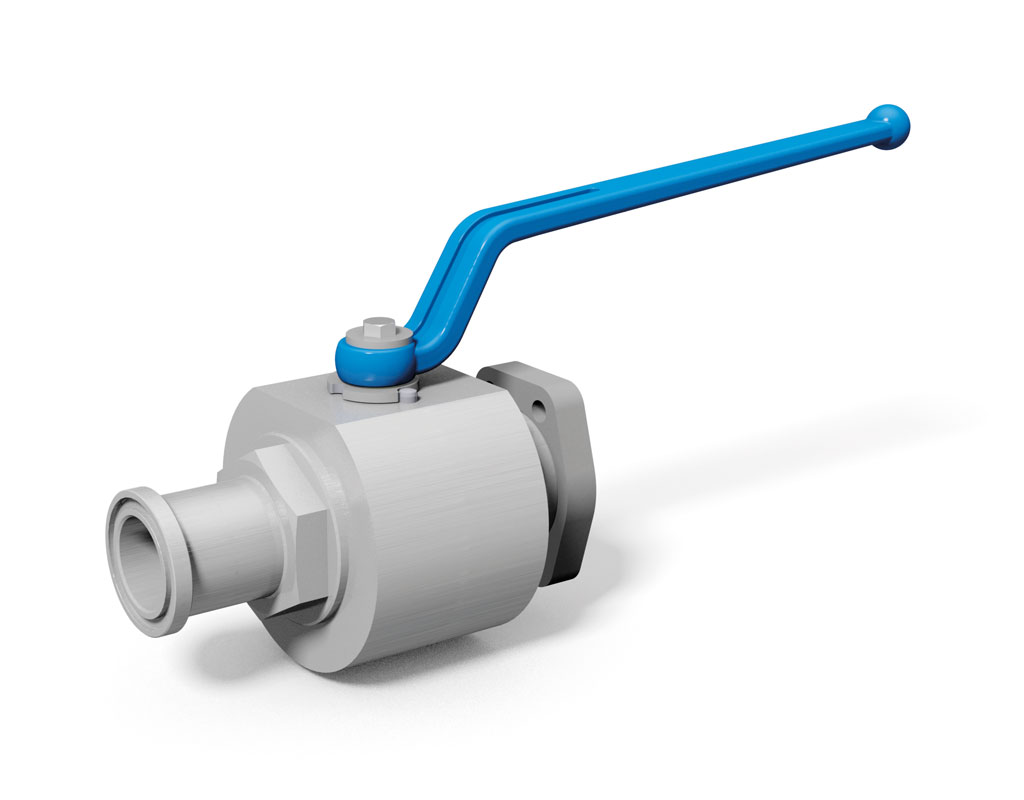

BKH-/BKHP-SAEFS
- 2-way ball valve with SAE split flange adapter
- PN : 320 - 420 bar
- Available sizes : DN13 - DN25 (1/2" to 1")
MKHP-SAEFS
- 2-way ball valve with SAE split flange adapter
- PN : 210 - 420 bar
- Available sizes : DN32 - DN50 (1 1/4" to 2")

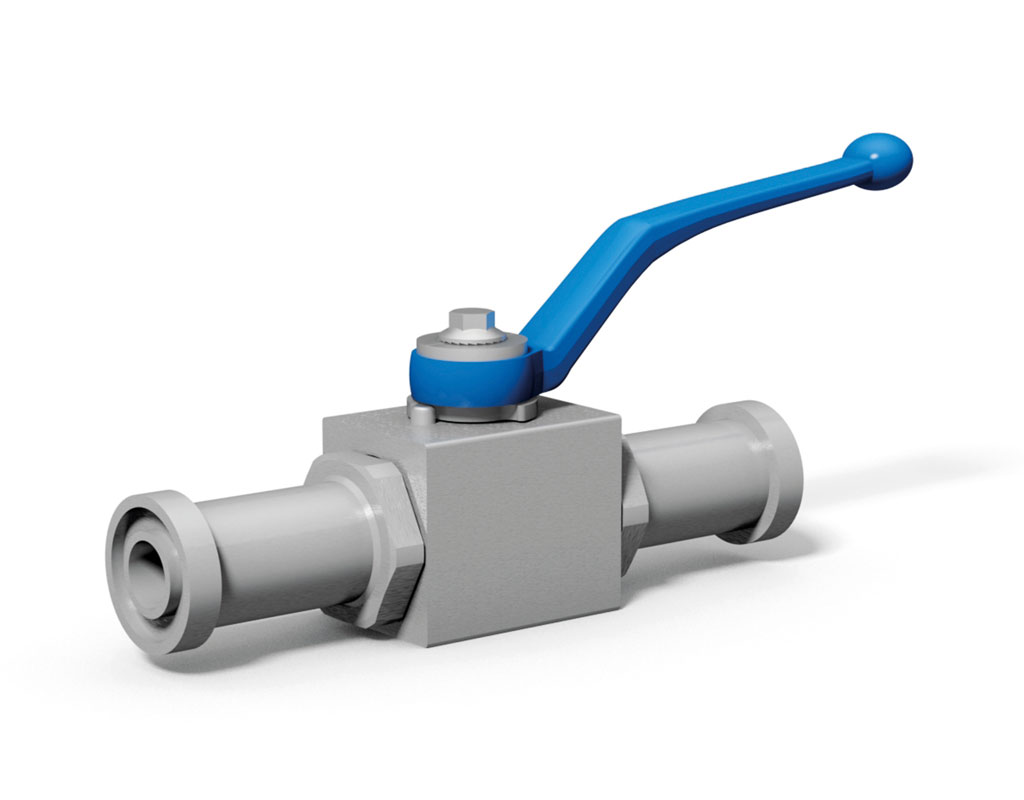

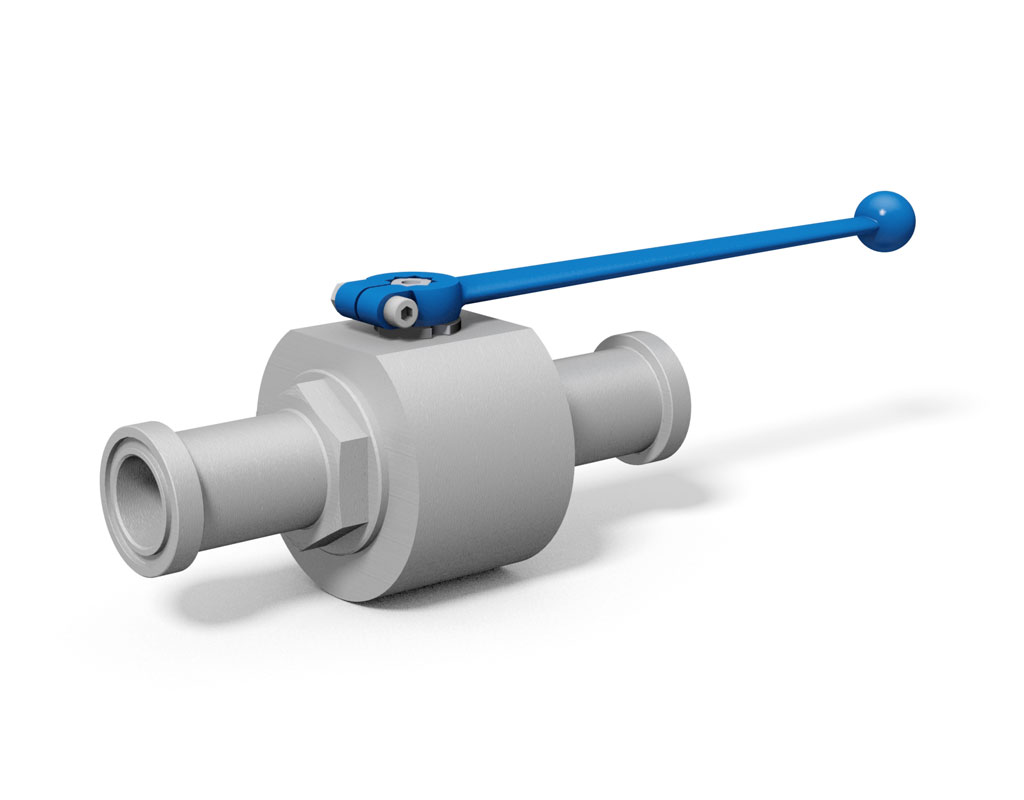

BKH-SAE / BKHP-SAE
- 2-way ball valve with SAE adapter metric / UNC
- PN : 320 - 420 bar
- Available sizes : DN13 - DN25 (1/2" to 1")
MKHP-SAE
- 2-way ball valve with SAE adapter metric / UNC
- PN : 175 - 420 bar
- Available sizes : DN32 - DN50/65 (1 1/4" to 2")
MKHP-SAE (Stainless steel)
- 2-way ball valve with SAE adapter metric / UNC
- PN : 175 - 420 bar
- Available sizes : DN32 - DN50/65 (1 1/4" to 2")

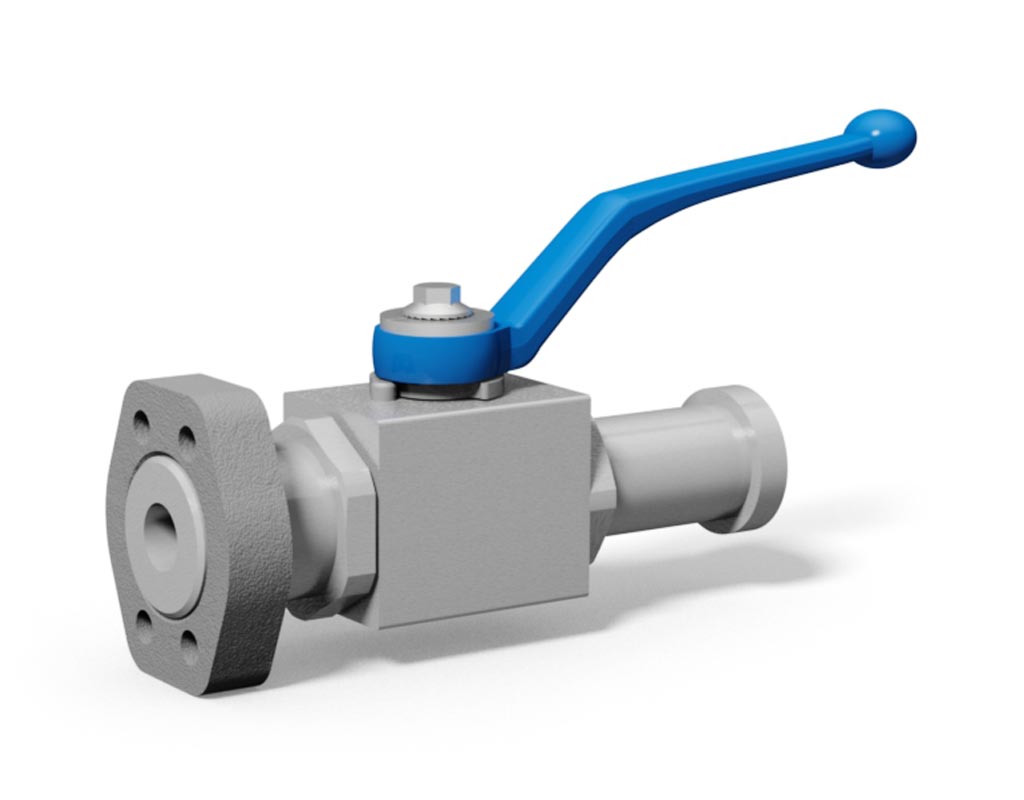

BKH/BKHP-SAE/SAEFS
- 2-way ball valve with SAE adapter / split flange adapter
- PN : 315-420 bar
- Available sizes : DN13 - DN25 (1/2“ to 1“)
MKHP-SAE/SAEFS
- 2-way ball valve with SAE adapter / split flange adapter
- PN : 210 - 420 bar
- Available sizes : DN32 - DN50
(1 1/4“ to 2“)

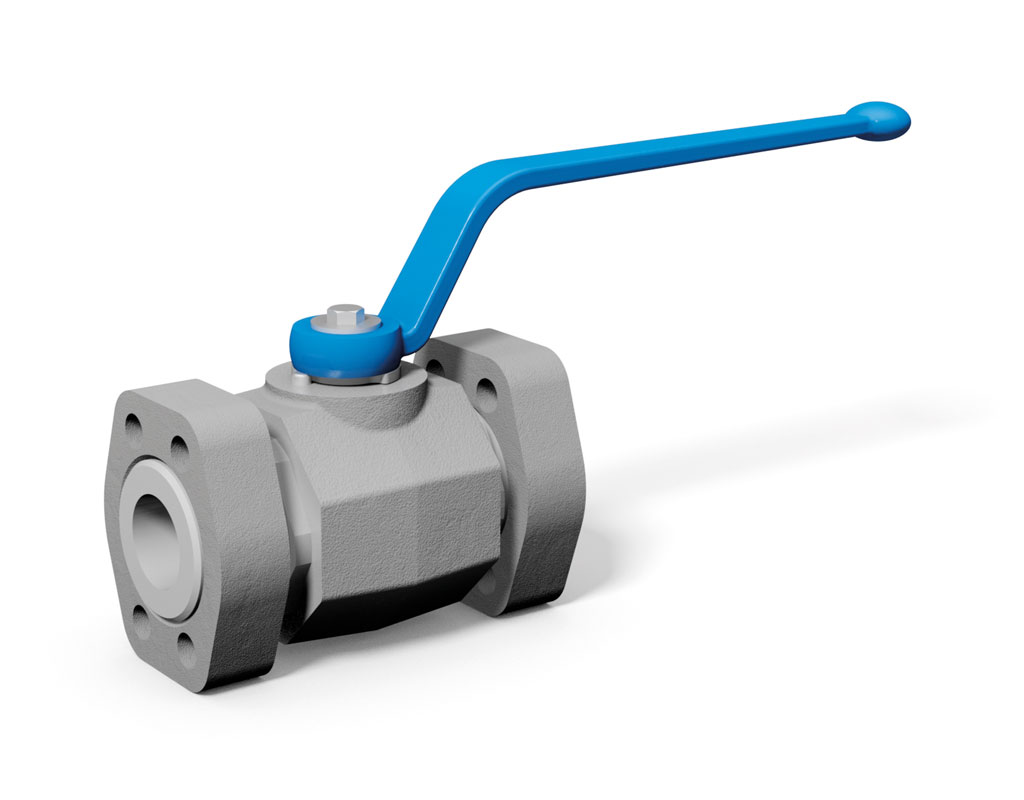

KH-SAE
- 2-way flange ball valve with SAE connection metric / UNC - double flange pattern SAE210/420
- PN : 100 - 420 bar
- Available sizes :DN15 - DN80 (5/8“ to 3“)
KH-SAE
- 2-way flange ball valve with SAE connection metric / UNC - single flange pattern SAE210
- PN : 35 - 175 bar
- Available sizes : DN65 - DN125 (2 1/2“ to 5“)
KH-SAE (Stainless steel)
- 2-way flange ball valve with SAE connection metric / UNC - single flange pattern SAE210 or SAE420
- PN : 32 - 420 bar
- Available sizes : DN15 - DN125 (5/8“ to 5“)
4. 2-WAY BALL VALVES FLANGEABLE WITH SAE CONNECTIONS

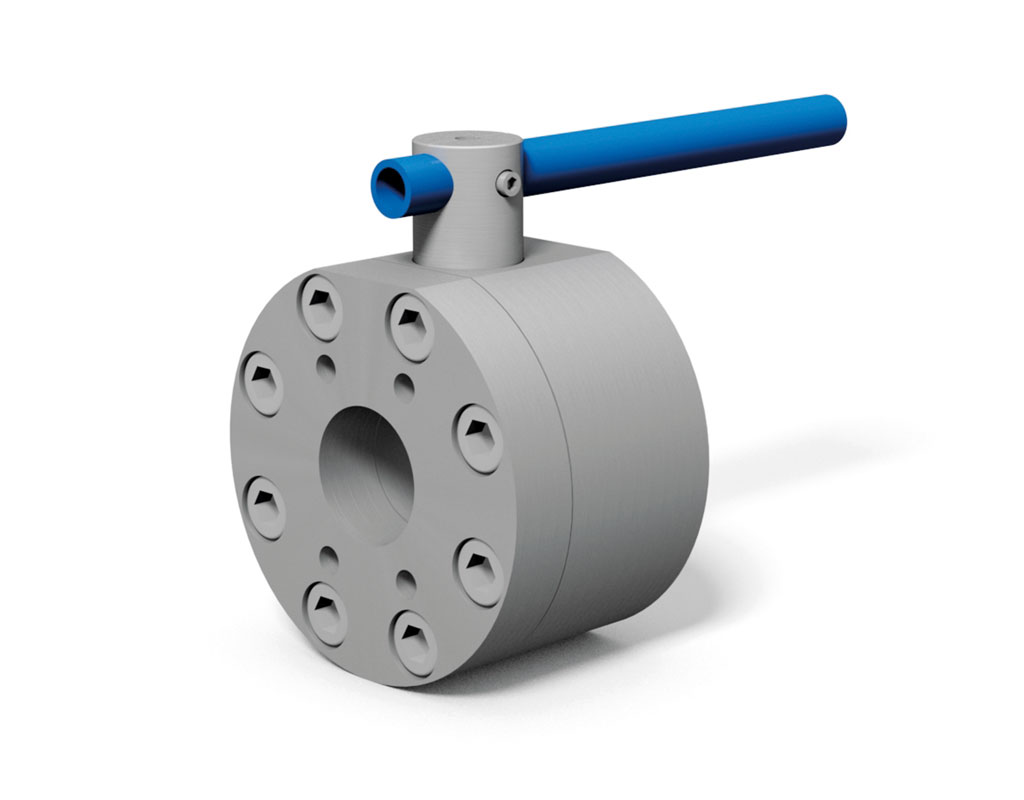

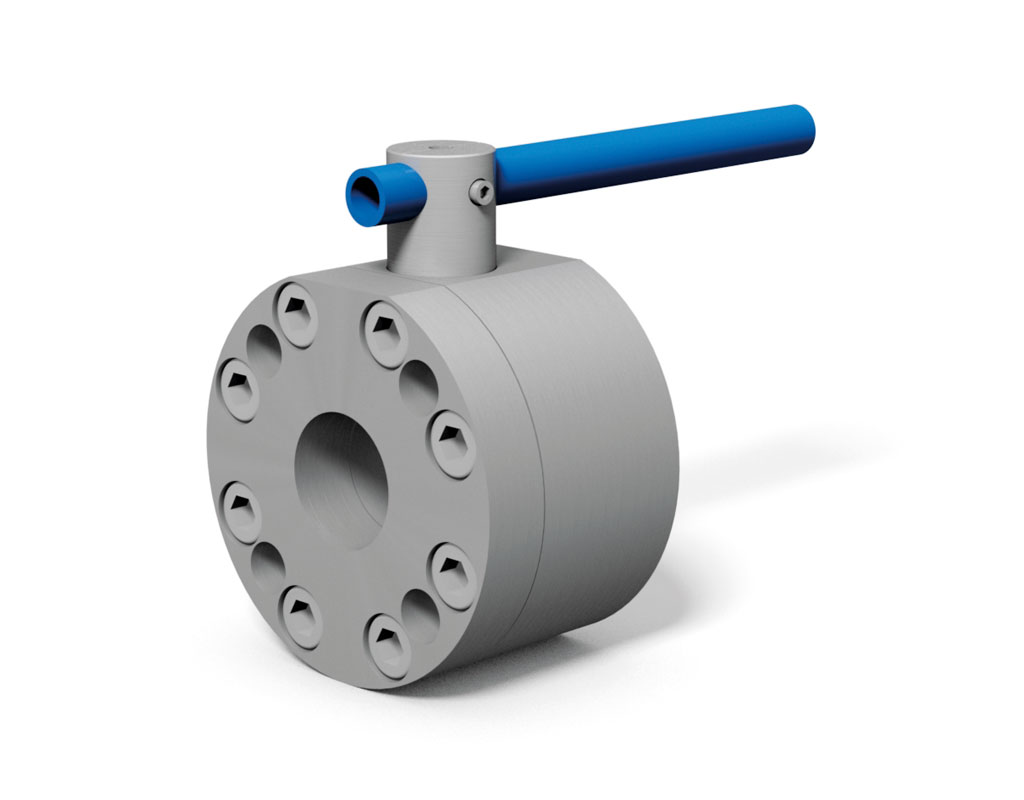

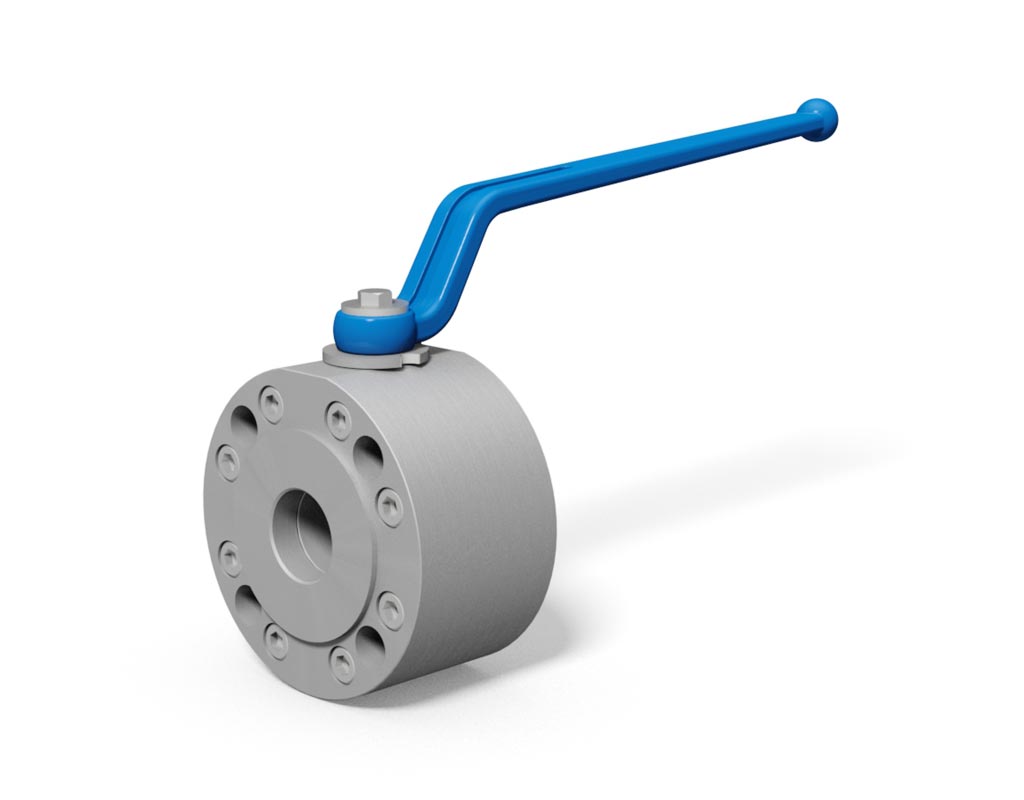

KHZ-SAE
- 2-way intermediate ball valve with SAE connection metric / UNC
- PN : 210 - 420 bar
- Available sizes : DN13 - DN50 (1/2“ to 2“)
KHZ-SAE (Stainless steel)
- 2-way intermediate ball valve with SAE connection metric / UNC
- PN : 210 - 420 bar
- Available sizes : DN13 - DN50 (1/2“ to 2“)
KH-SAE flangeable
- 2-way flange ball valve with SAE connection metric / UNC
- PN : 35 - 175 bar
- Available sizes : DN50 - DN125(2“ to 5“)
5. 2-WAY BALL VALVES WITH ISO / CETOP CONNECTIONS
KH-ISO
- 2-way flange ball valve with ISO connection
- PN : 100 - 400 bar
- Available sizes :DN13 - DN200 (1/2“ to 8“)
KH-ISO (Stainless steel)
- 2-way flange ball valve with ISO connection
- PN : 100 - 400 bar
- Available sizes : DN13 - DN200 (1/2“ to 8“)

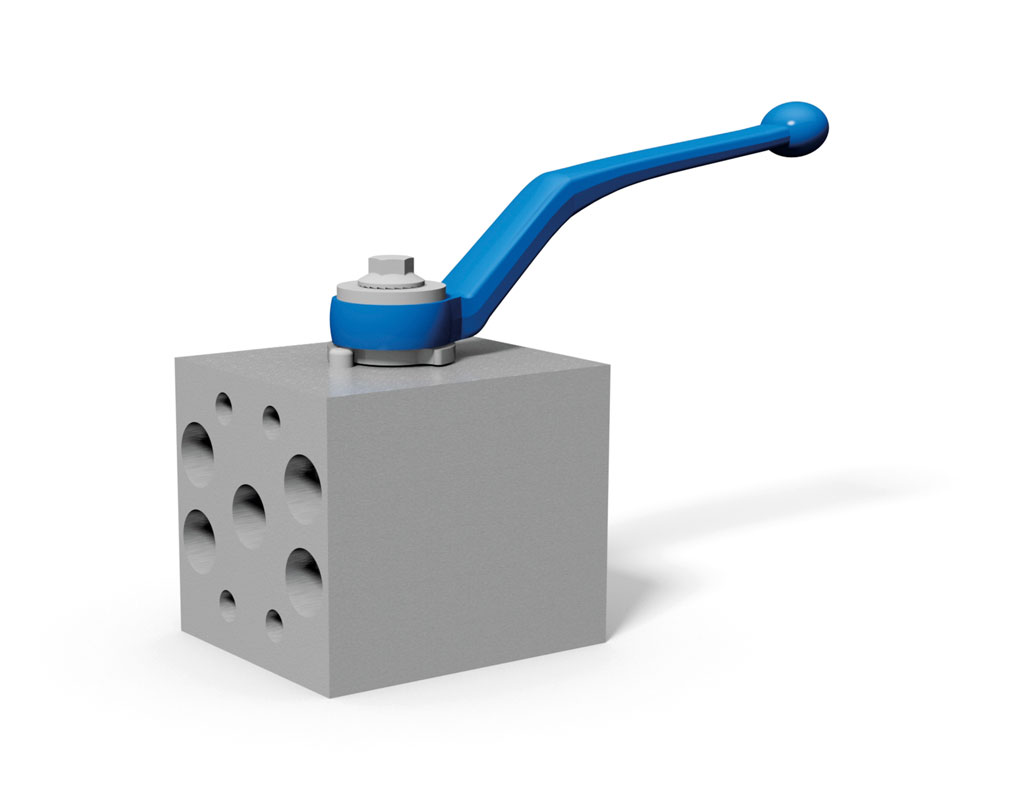

KH-CETOP
- 2-way flange ball valve with CETOP connection
- PN : 100 - 400 bar
- Available sizes : DN40 - DN100 (1 1/2“ to 4“)
6. 2-WAY BALL VALVES WITH WELDING ENDS

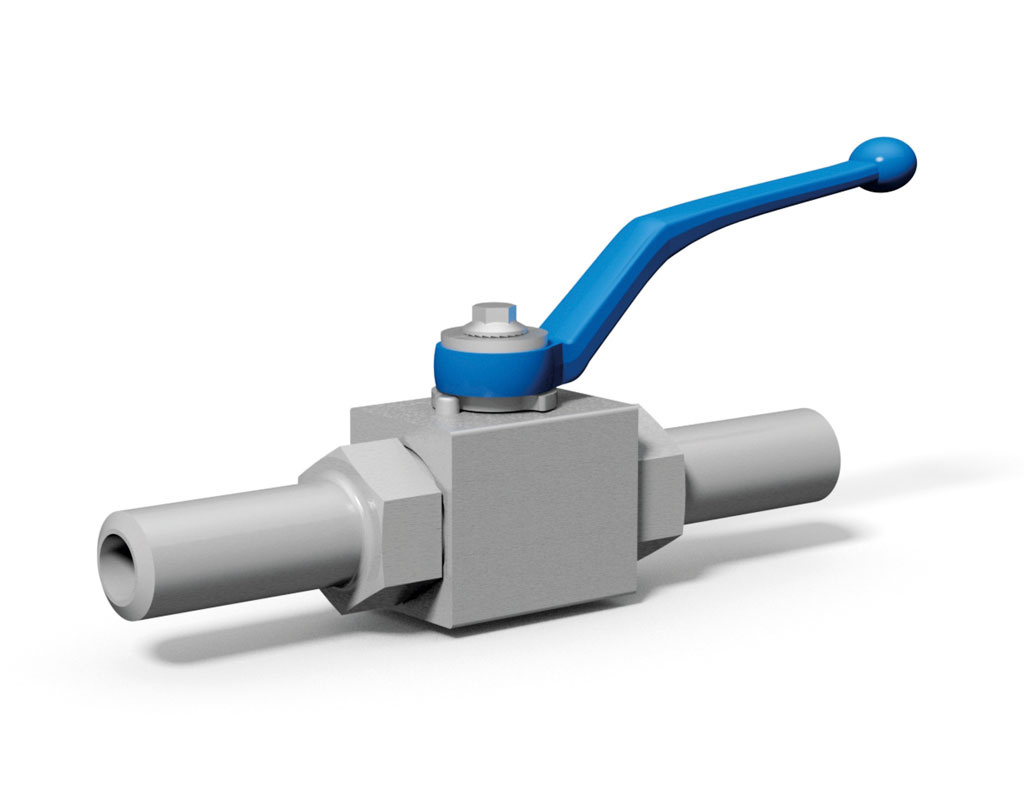

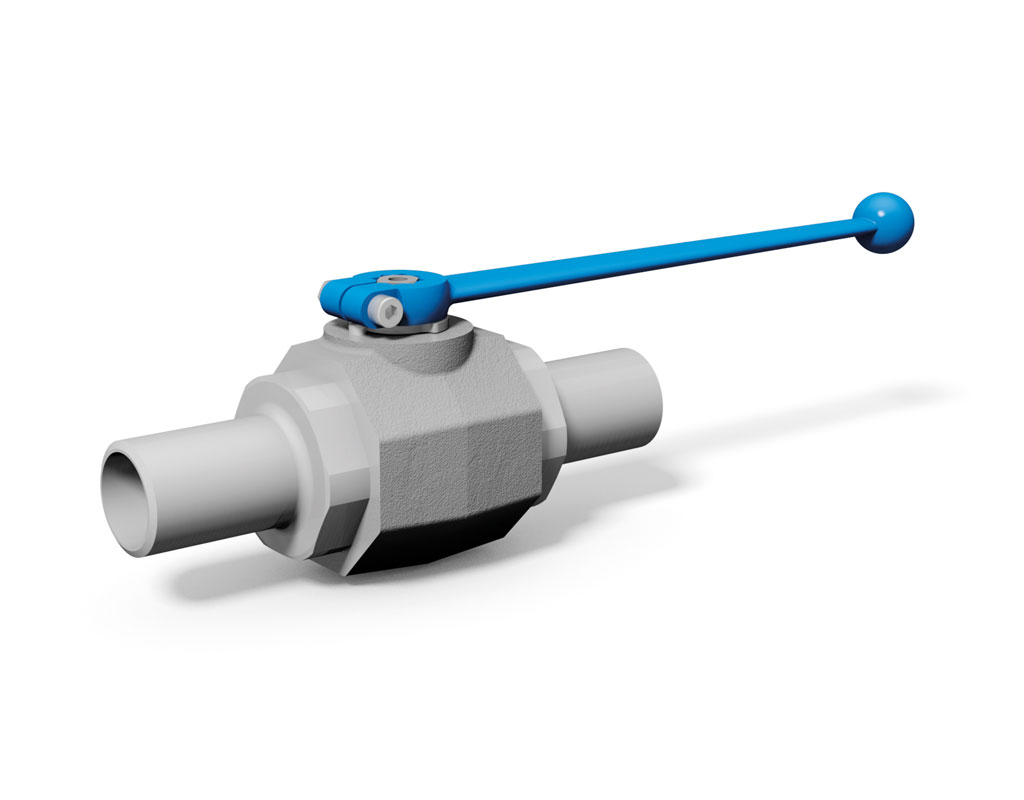

BKH-AS
- 2-way ball valve with welding ends
- PN : 160 bar
- Available sizes : DN10 - DN25/40 (3/8“ to 1“)

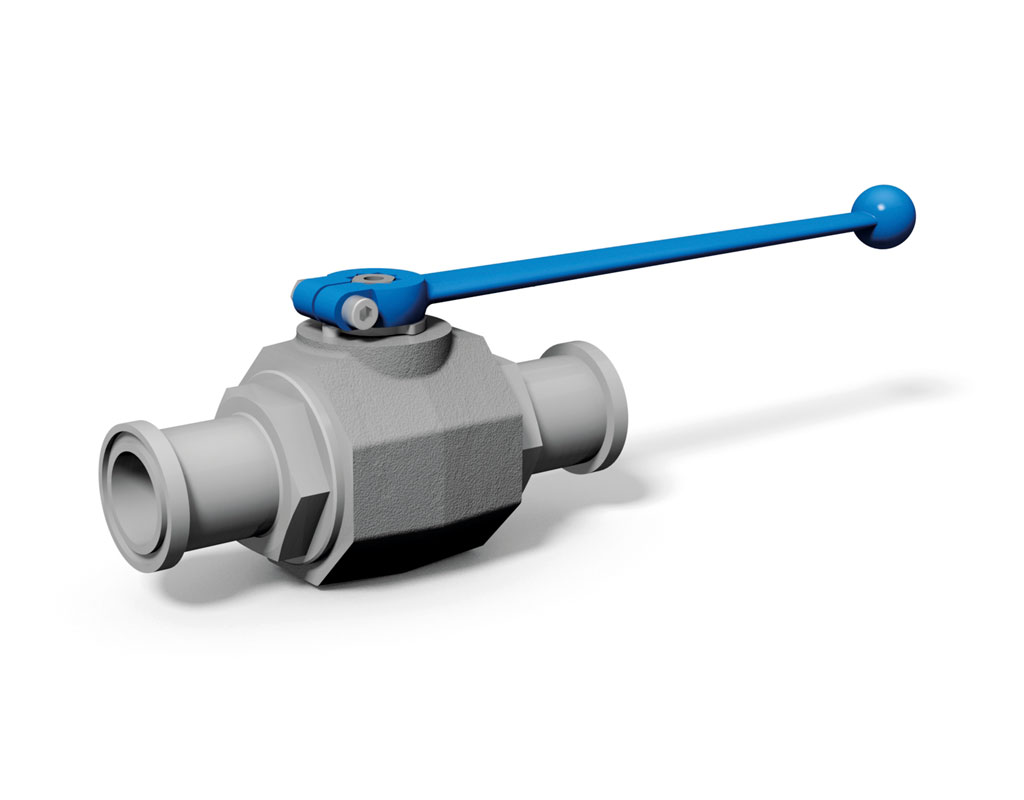

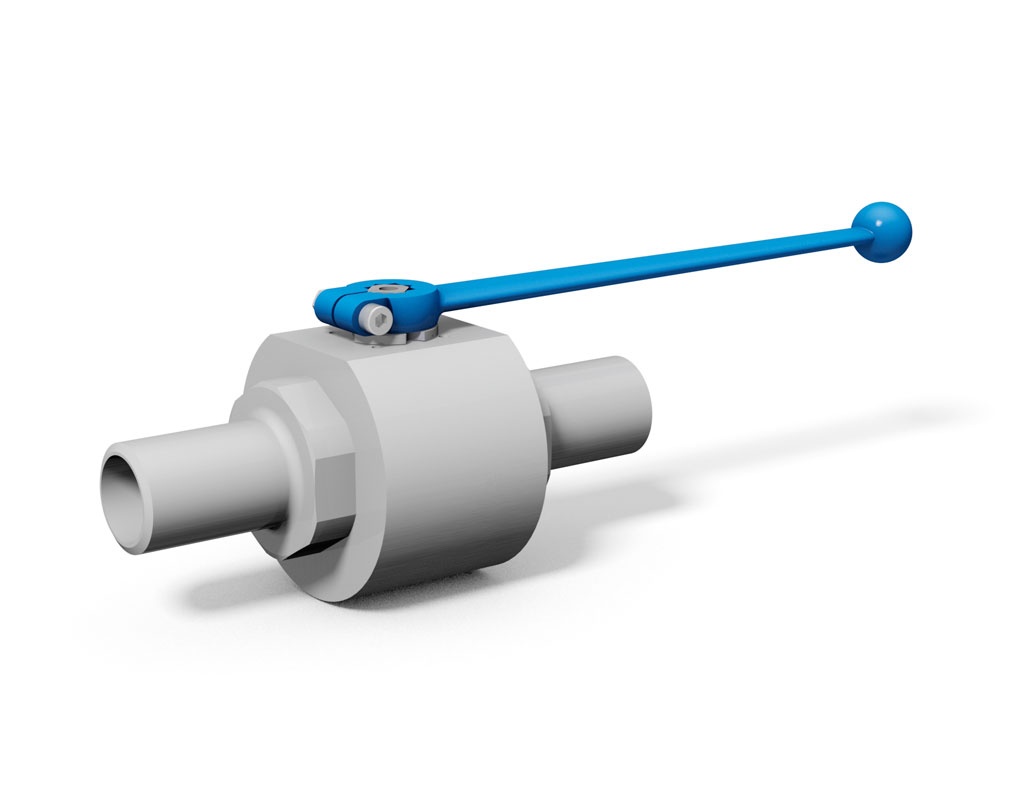

MKHP-AS
- 2-way ball valve with welding ends
- PN : 160 bar
- Available sizes : DN32 - DN50/65 (1 1/4“ to 2“)

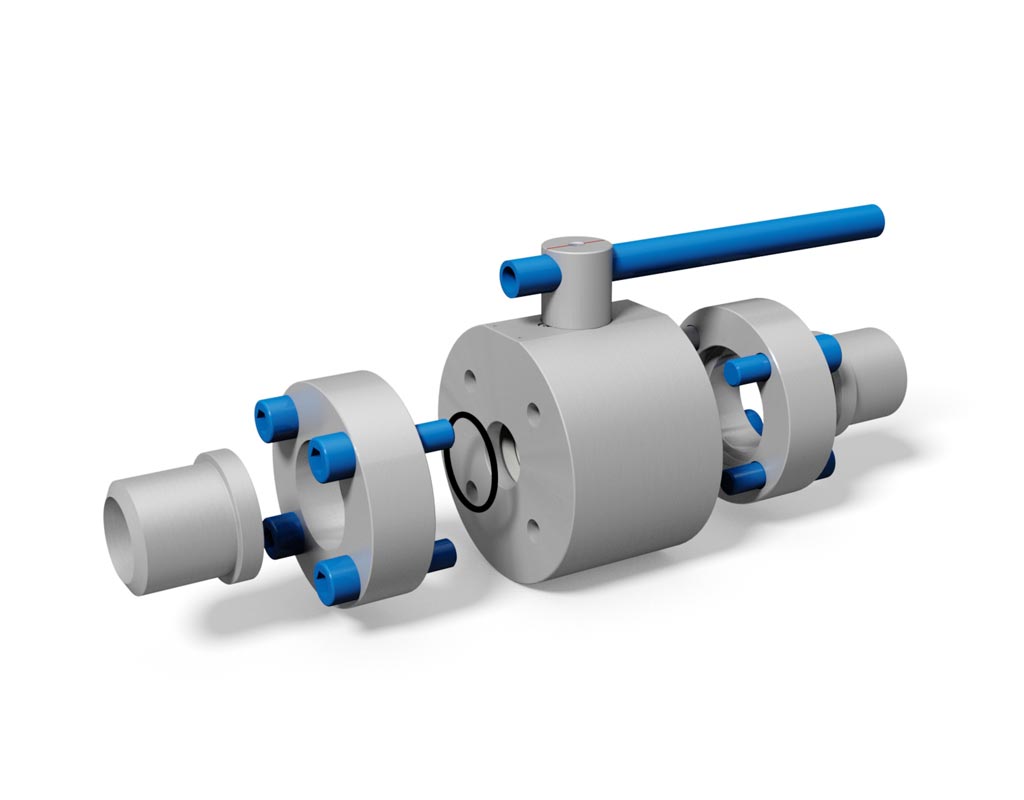

KH-AS
- 2-way flange ball valve with welding ends
- PN : 80 - 400 bar
- Available sizes : DN65 - DN125 (2 1/2" to 5")
7. 2-WAY BALL VALVES WITH DIN CONNECTIONS

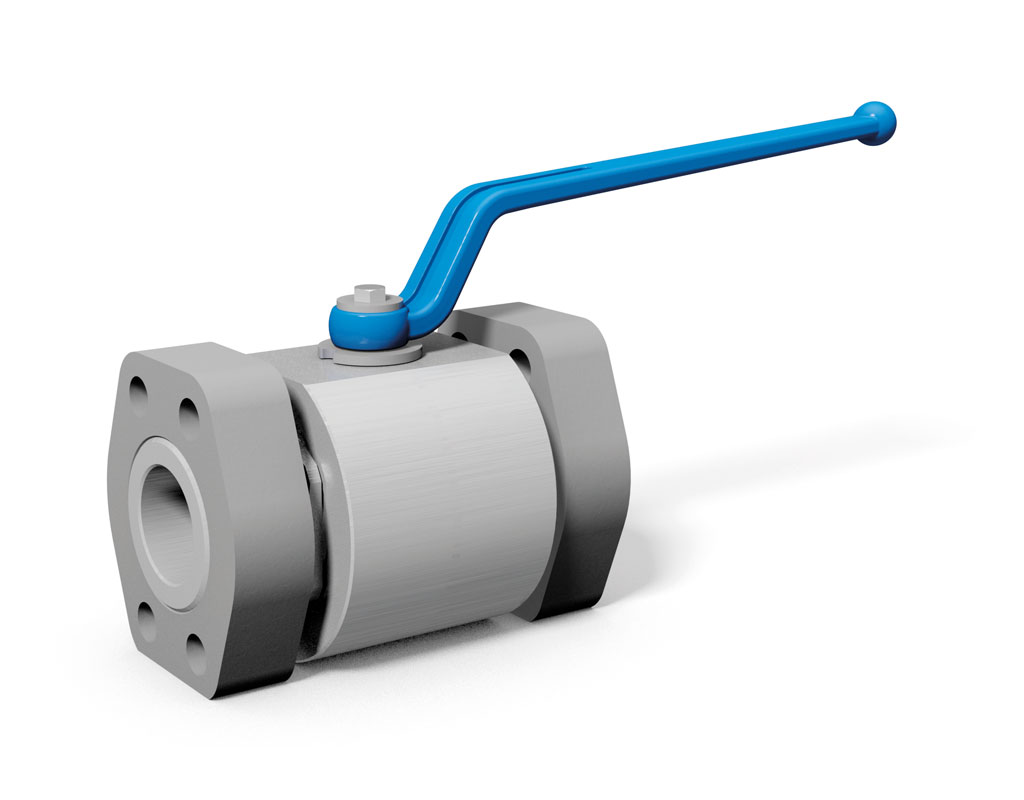

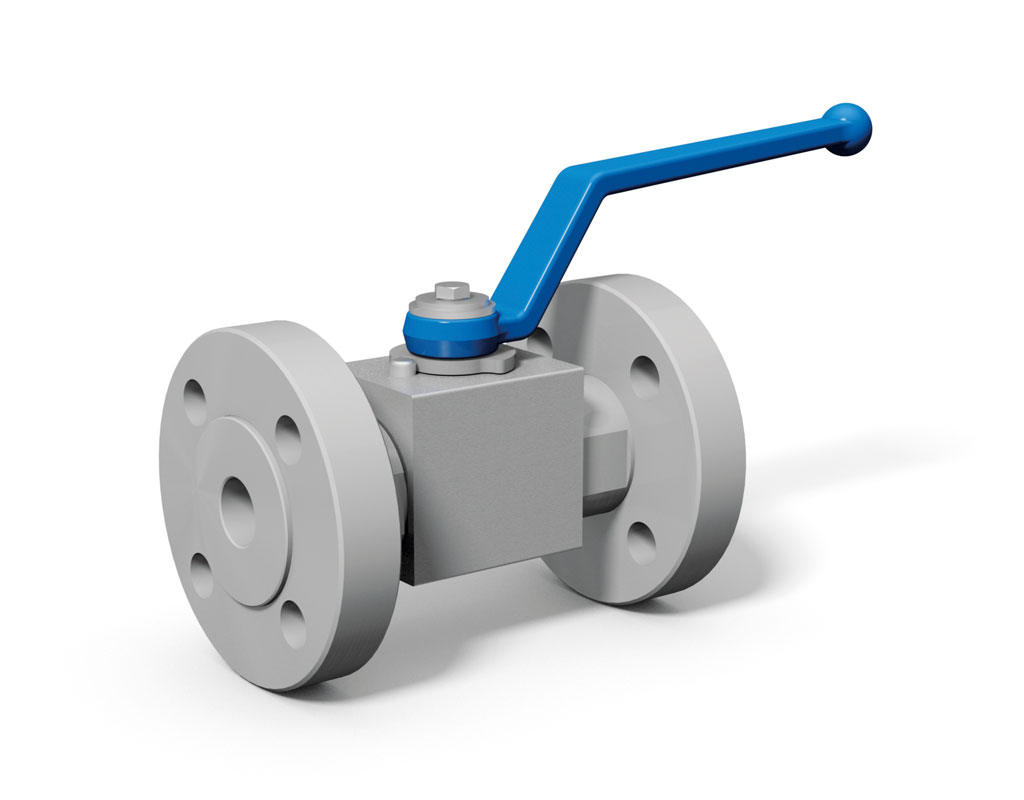

BKH-F
- 2-way flange ball valve with DIN flange connection
- PN : 40 - 320 bar
- Available sizes : DN15 - DN25/32 (5/8" to 1")
MKHP-F
- 2-way flange ball valve with DIN flange connection
- PN : 40 - 320 bar
- Available sizes : DN32 - DN50 (1 1/4" to 2")
KH-DIN
- 2-way flange ball valve with DIN flange connection
- PN : 40 - 160 bar
- Available sizes :DN40 - DN150 (1 1/2" to 6")
